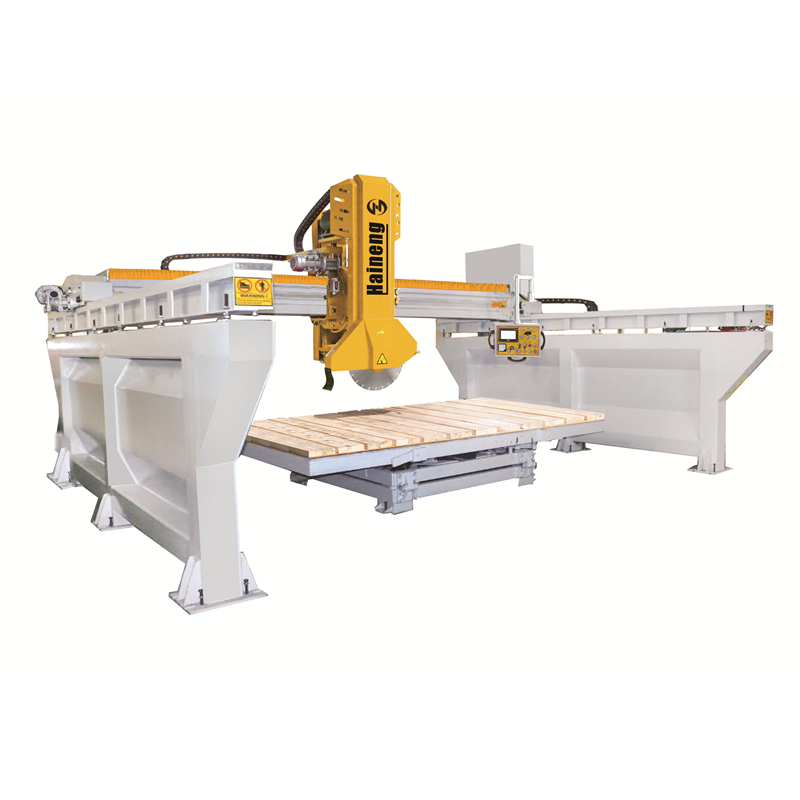

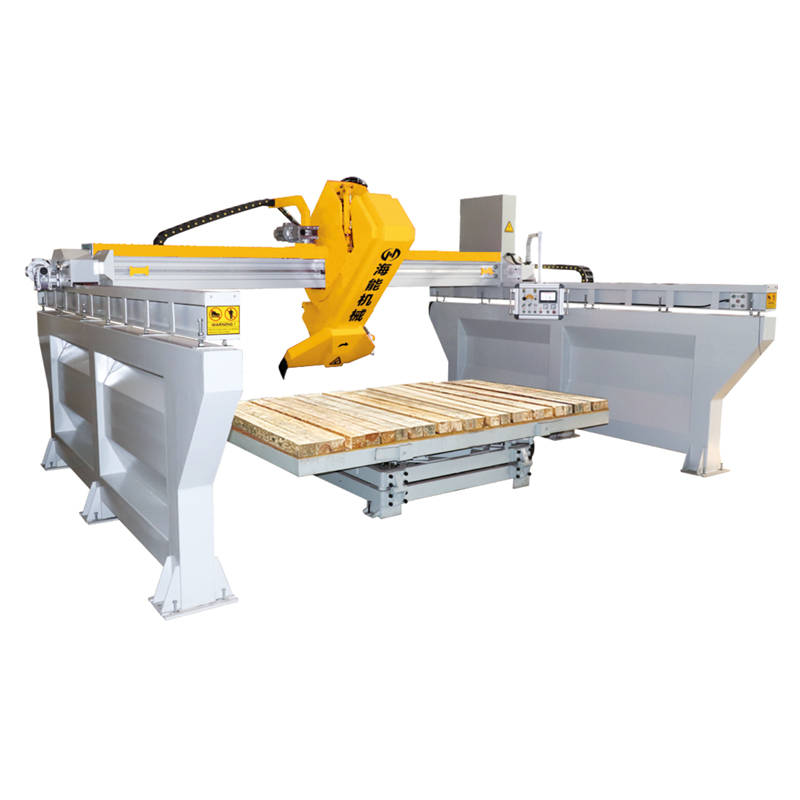

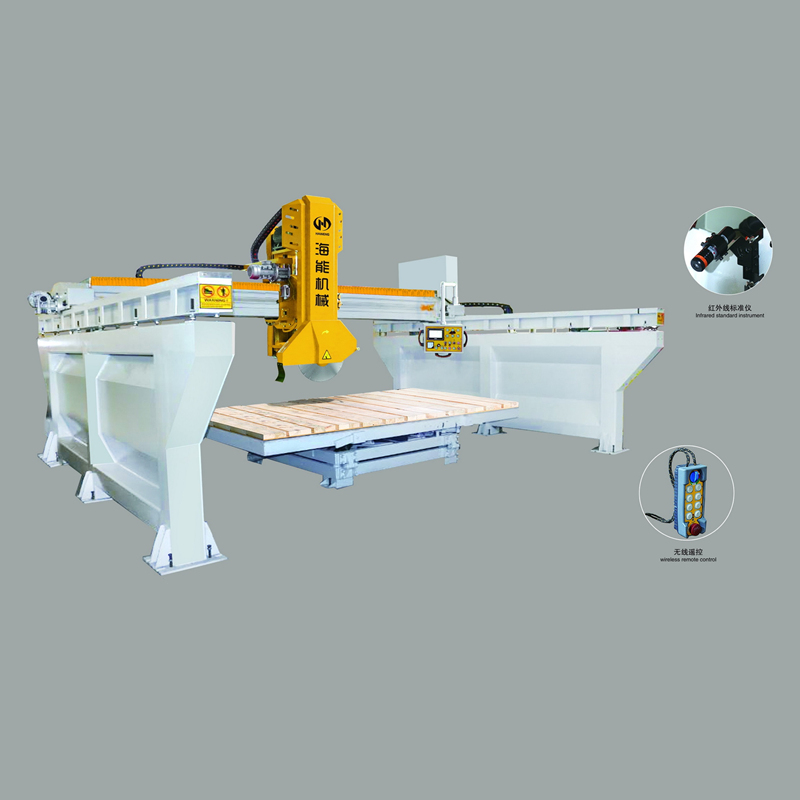

HXQ800 Tilting Bridge Type Stone Cutting Machine

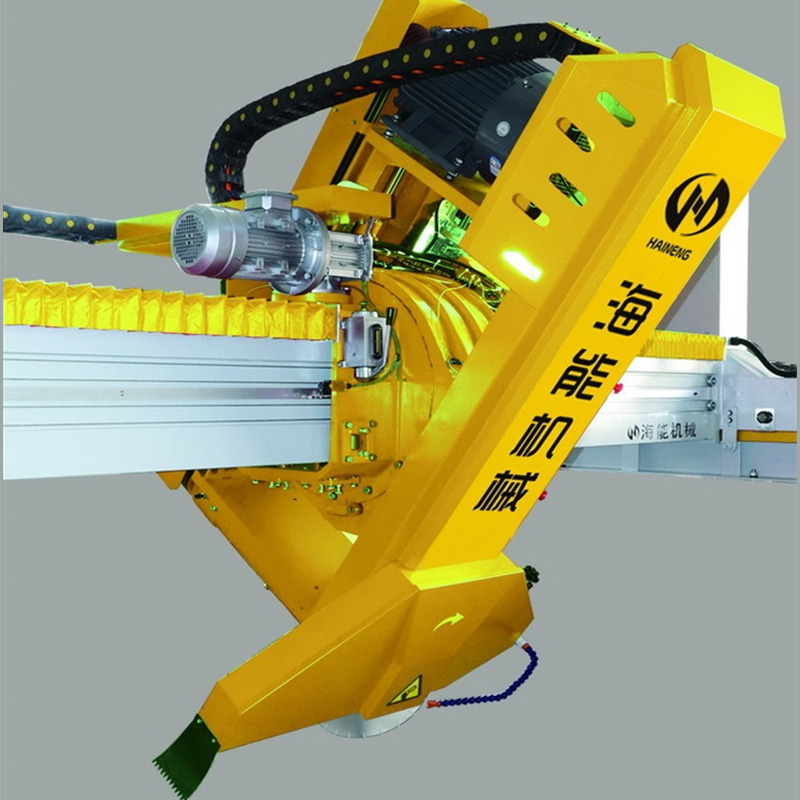

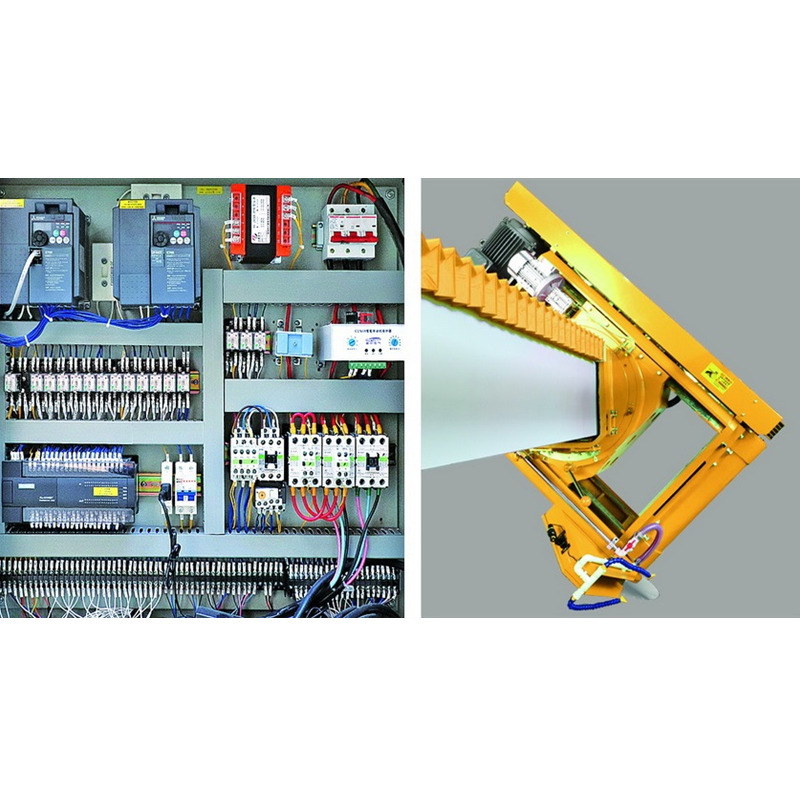

It uses PLC system and human-machine interface,combined with high precision magnetic ruler to locate and infrared device,uses inverter to control left-right feeding,adjusts the speed according to the stone material. It use hydraulic lifting system,main electric parts adopt imported good-quality materials, the head can rotate 0-45 degree with a wide using range.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
It uses PLC system and human-machine interface,combined with high precision magnetic ruler to locate and infrared device,uses inverter to control left-right feeding,adjusts the speed according to the stone material. It use hydraulic lifting system,main electric parts adopt imported good-quality materials, the head can rotate 0-45 degree with a wide using range. Thus the whole machine is featured as high cutting efficiency,high cutting precision,high stability,easy-operating to suit granite and marble.
Technical Parameters
|
HXQ-800 Tilting Bridge Type Stone Cutting Machine |
||
|
Type |
unit |
ANYTH800-2 |
|
Blade diameter |
mm |
Φ800 |
|
Max. Working dimensions（L×W×H） |
mm |
3200×2000×200 |
|
Worktable size (L×W) |
mm |
3200×2000 |
|
Worktable turnover degree |
n° |
0°-85° |
|
Workbench rotating degree |
n° |
360° |
|
Head tilting degree |
n° |
0°-45° |
|
Power of main motor |
kw |
22 |
|
Water consumption |
m³/h |
5.5 |
|
Dimension (L×W×H) |
mm |
6000x4400x3000 |
Processing
Loading
