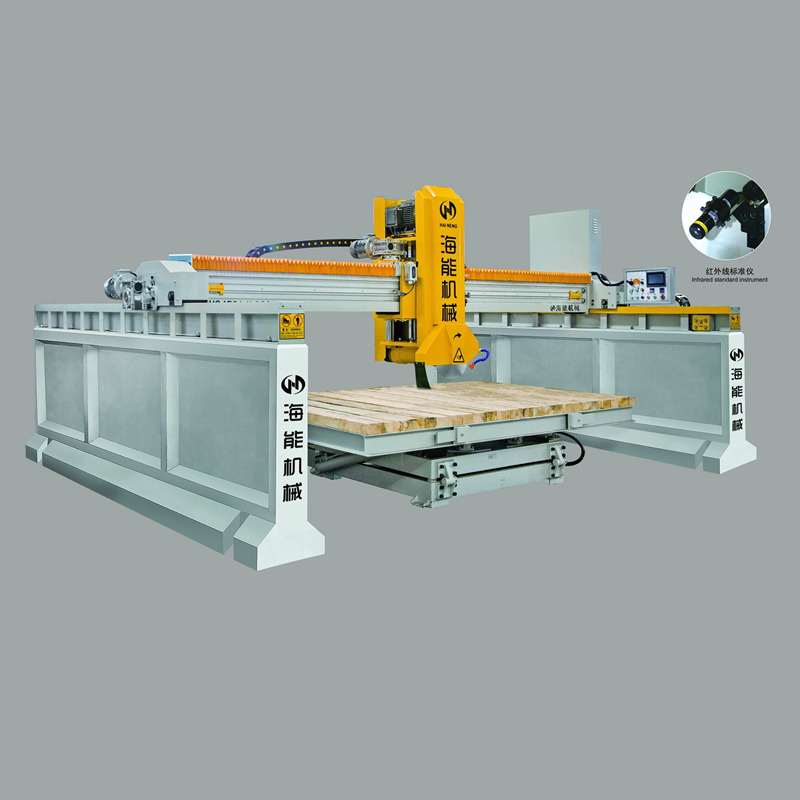

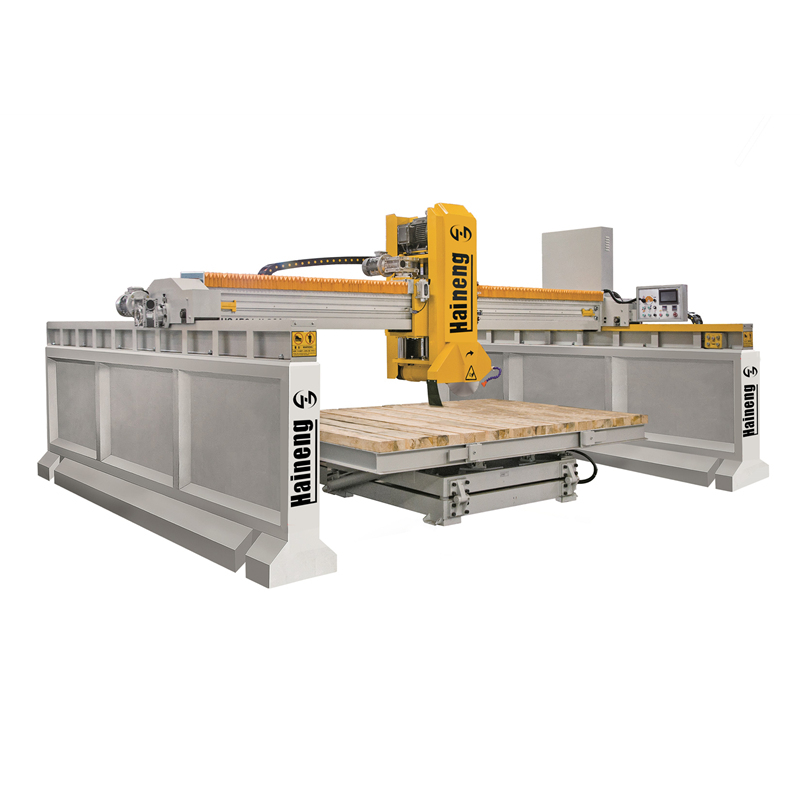

Infrared Bridge Type Stone Cutting Machine Conventional Type
This machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
Item No.:
HQ450A
HQ600A
HQ700A
HQ800A
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.
Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.
Technical Parameters
ANYTH450 / 600 / 700 / 800 Infrared Bridge Type Stone Cutting Machine(Conventional) | |||||
Type | unit | HQ450A | HQ600A | HQ700A | HQ800A |
Max. Working dimensions（L×W×H） | mm | 3200×2000×100 | 3200×2000×180 | 3200×2000×240 | 3200×2000×280 |
Blade diameter | mm | Φ350-Φ450 | Φ350-Φ600 | Φ350-Φ700 | Φ500-Φ800 |
Max.Lifting stroke | mm | 230mm | 380mm | 480mm | 580mm |
Worktable size (L×W) | mm | 3200×2000 | |||
Worktable turnover degree | n° | 0-85n° | |||
Power of main motor | kw | 15 | 18.5 | 18.5 | 18.5 |
Total power | kw | 21 | 24.5 | 24.5 | 24.5 |
Water consumption | m³/h | 4 | 4 | 4.5 | 4.5 |
Dimension (L×W×H) | mm | 6000×4800×3000 | 6000×4800×3200 | 6000×5000×3400 | 6000×5000×3600 |
Total weight | kg | 5400 | 5600 | 5800 | 6000 |

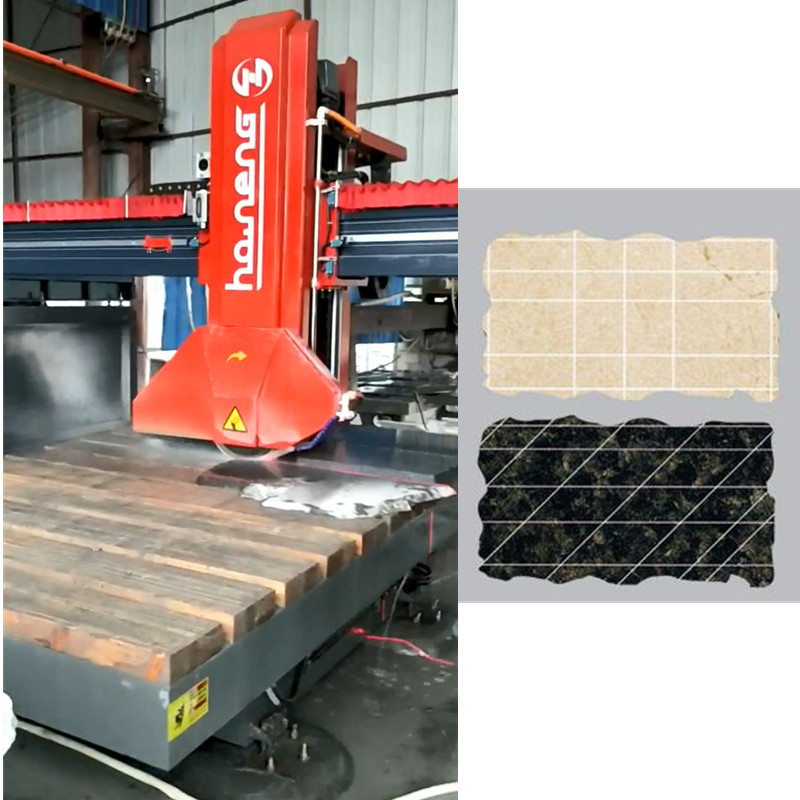

Processing

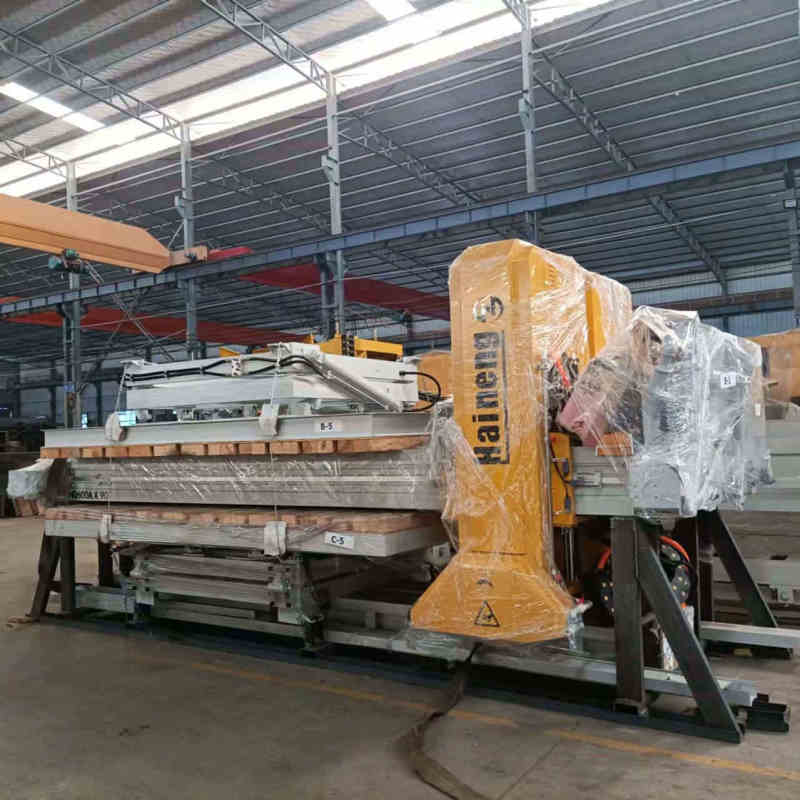

Loading
