Infrared Head Chamfering Bridge Type Stone Cutting Machine
This machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.

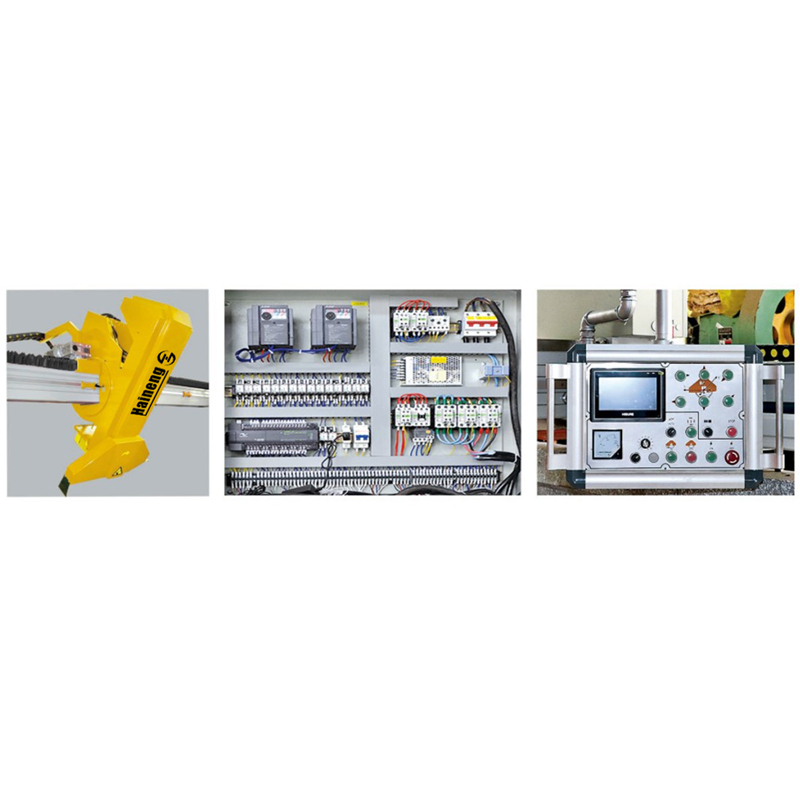

The main control components are all international famous brand components, The beam adopts oil-immersed double V-shaped track, the transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic mountain counting to ensure the machine working precision.
The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 360 degrees per 45 degrees. It can be jumped and positioned with any angular position and brake. It can cut rectangular, octagonal, circular, round, and small and medium angles shape.
Technical Parameters
|
Infrared (Head Chamfering) Bridge Type Stone Cutting Machine |
||
|
Type |
unit |
ANYTH625 |
|
Blade diameter |
mm |
Φ700 |
|
Max. Working dimensions（L×W×H） |
mm |
3200×2000×200 |
|
Worktable size (L×W) |
mm |
3200×2000 |
|
Worktable turnover degree |
n° |
0°-85° |
|
Workbench rotating degree |
n° |
360° |
|
Head tilting degree |
n° |
0°-45° |
|
Power of main motor |
kw |
18.5 |
|
Water consumption |
m³/h |
4.5 |
|
Dimension (L×W×H) |
mm |
5800×4800×3200 |
---------------------------------------SEPARATED TYPE (HXQ-625A)---------------------------------------
----------------------------------------------------------------------------

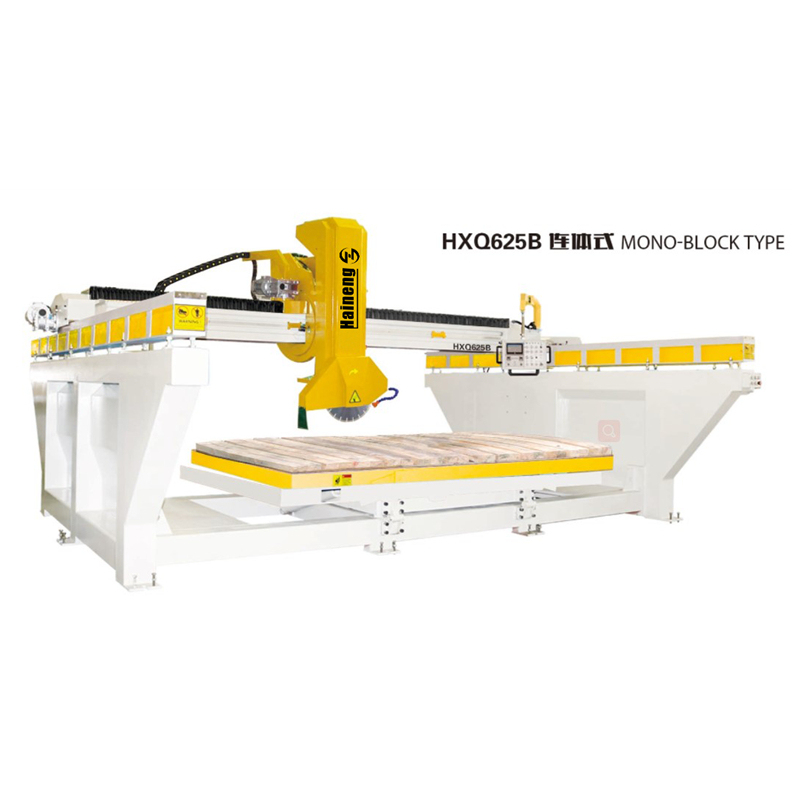

---------------------------------------INTEGRAL TYPE (HXQ-625B)---------------------------------------
Processing
Loading
