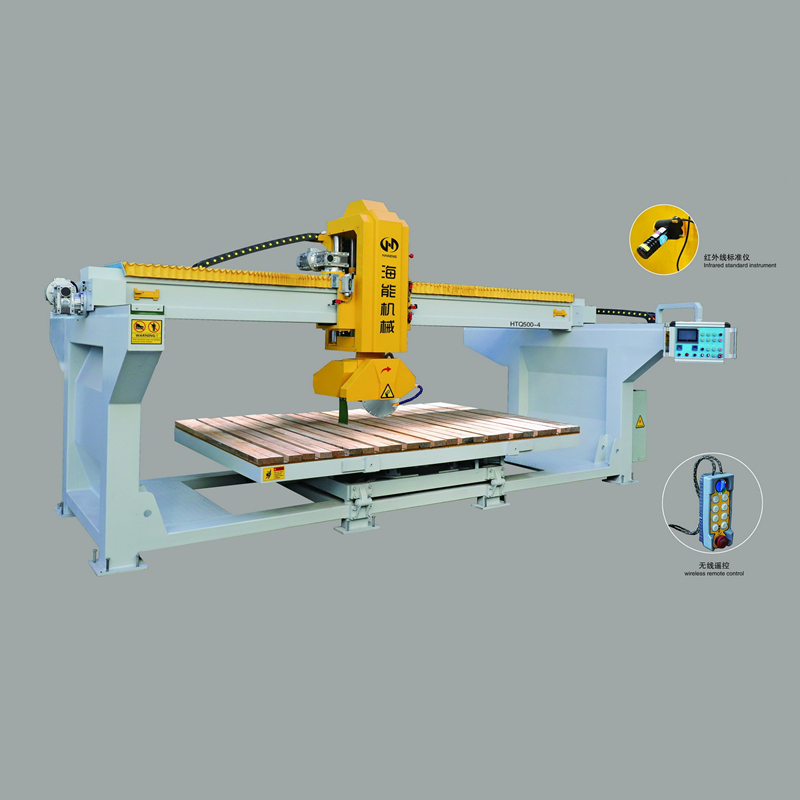

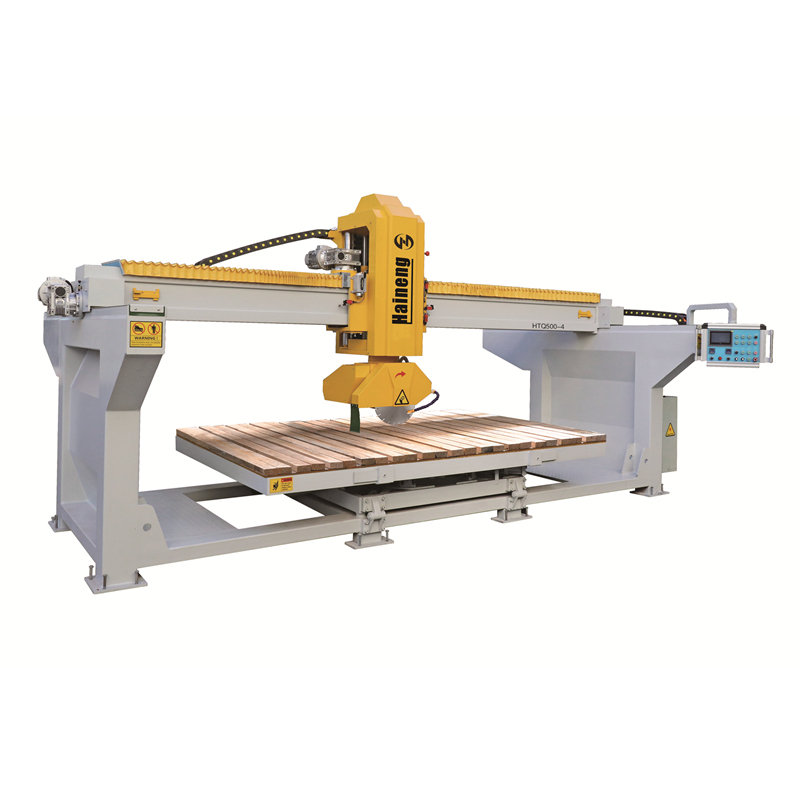

Marble Granite CNC Mononoblock Mitre Bridge Saw
Monoblock Bridge Saw is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free.
Item No.:
HTQ500A-1
HTQ500A-2
HTQ500A-3
HTQ500A-4
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Product Introduction
Monoblock Bridge Saw is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free.

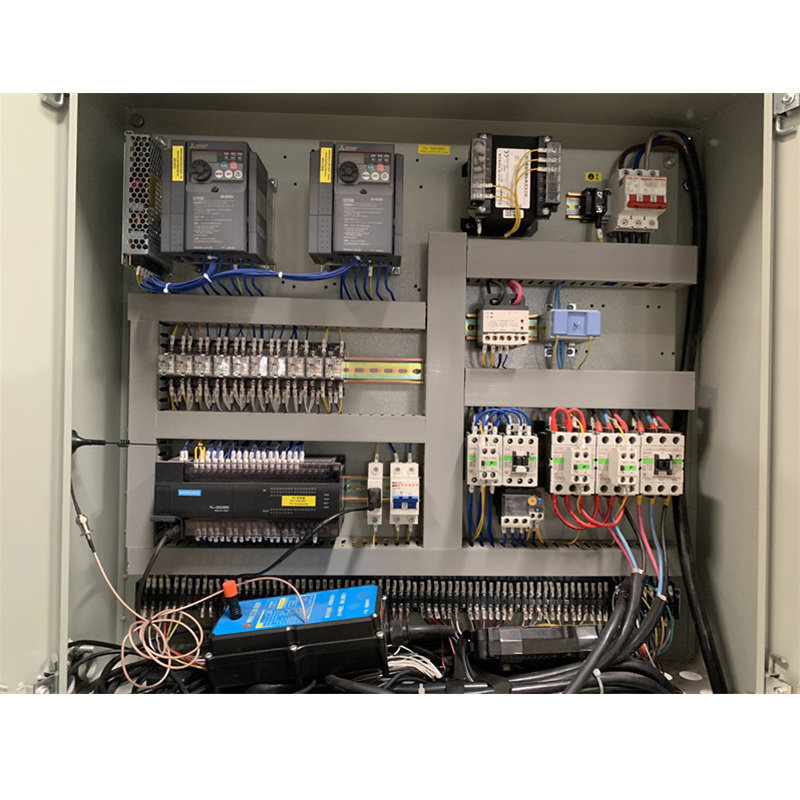

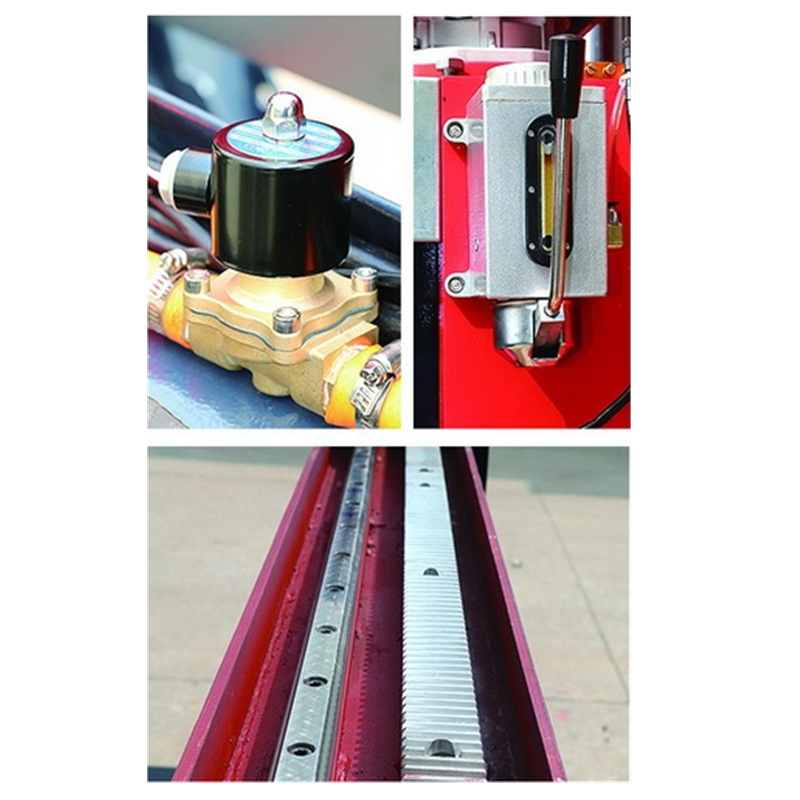

The main control components all use international famous brand components, cross frame oil diffuse type double V track, transverse blade adopts stepless frequency conversion speed regulation, longitudinal splitter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. This is the perfect combination of simplicity, flexibility and durability.
One-piece self-supporting steel structure and the integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.
Technical Parameters
Monoblock Bridge Saw | |||||
Type | unit | HTQ500A-1 | HTQ500A-2 | HTQ500A-3 | HTQ500A-4 |
Blade diameter | mm | Φ350-Φ500 | Φ350-Φ500 | Φ350-Φ500 | Φ350-Φ500 |
Max. Working dimensions(L×W×H) | mm | 3200×2000×130 | 3200×2000×130 | 3200×2000×130 | 3200×2000×130 |
Workbench dimensions (L×W) | mm | 3200×2000 | 3200×2000 | 3200×2000 | 3200×2000 |

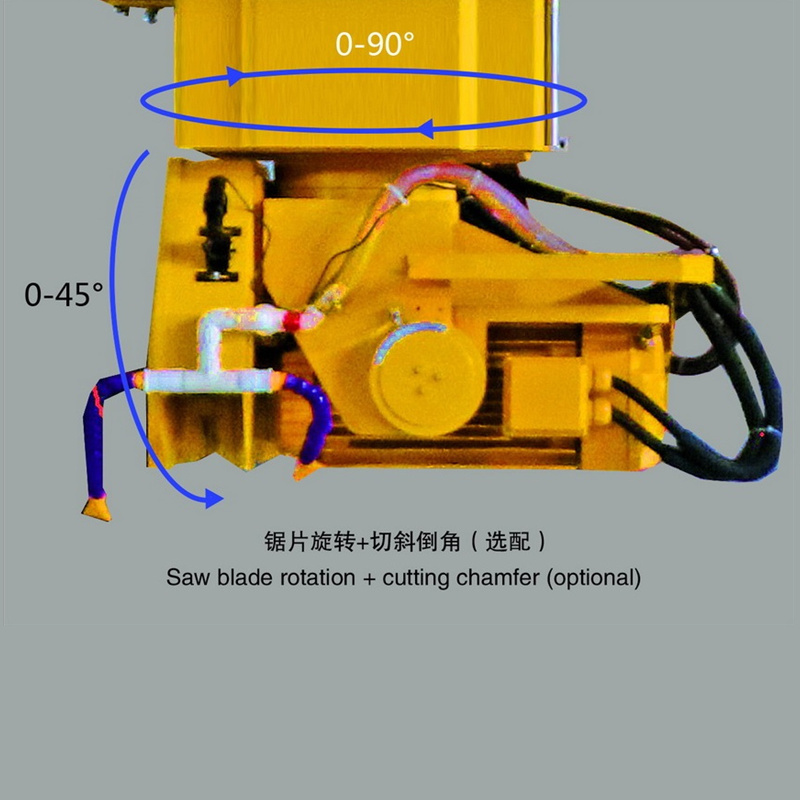

Head rotating degree | n° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
Blade tilting degree | n° | --- | 0°-45° | --- | 0°-45° |
Workbench rotating degree | n° | 0°-85° | 0°-85° | 0°-85° | 0°-85° |
Table rotating degree | n° | --- | --- | 0°-45°-360° | 0°-45°-360° |
Main motor Power | kw | 18.5 | 18.5 | 18.5 | 18.5 |
Water consumption | m³/h | 3.5 | 3.5 | 3.5 | 3.5 |
Dimension (L×W×H) | mm | 6000×3500×2600 | 6000×3500×2660 | 6000×3500×2750 | 6000×3500×2800 |
Total weight | kg | 6500 | 7000 | 6500 | 6500 |
