Multi Function CNC 5 Axis Bridge Saw
It is a new generation of 5axis Monoblock Bridge Saw with Vacuum Manipulation,Camera on Board,Tool Presetting,Slab Thickness Probe,Milling&Coring via collet on tilting head,advanced intelligent and synchronous CNC control system.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction

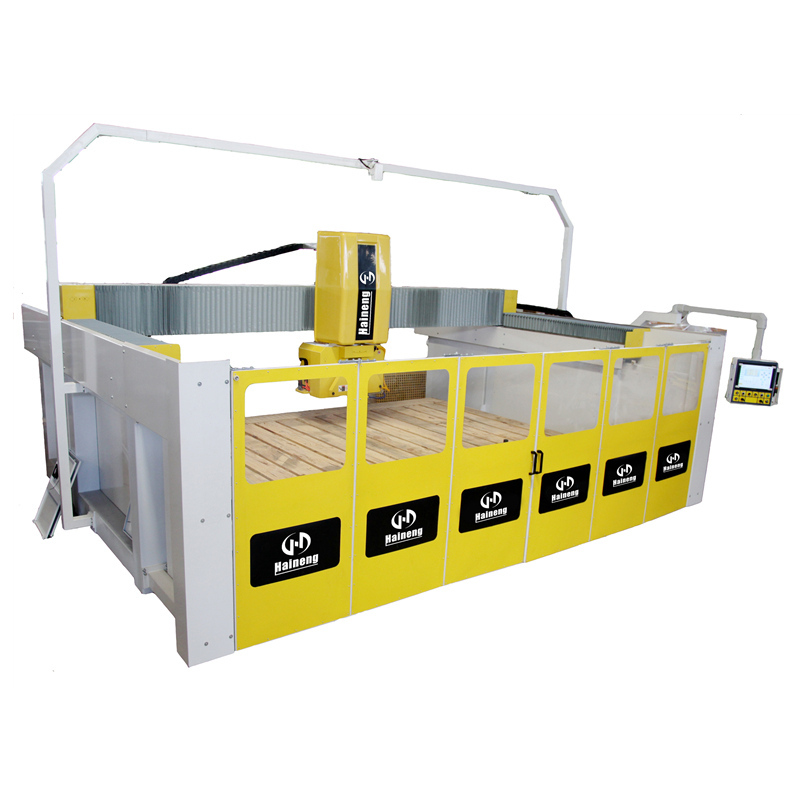

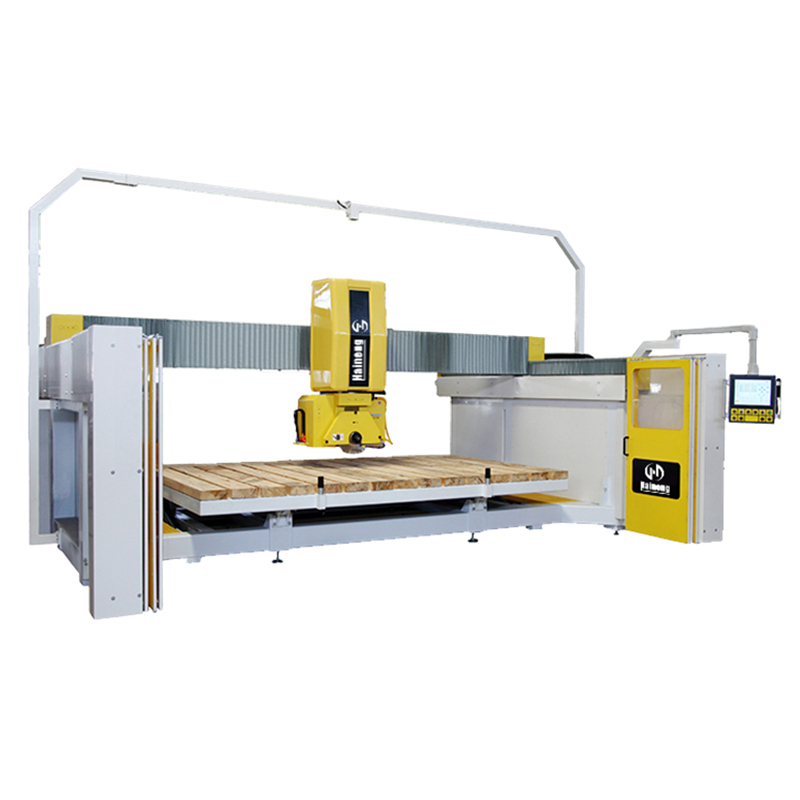

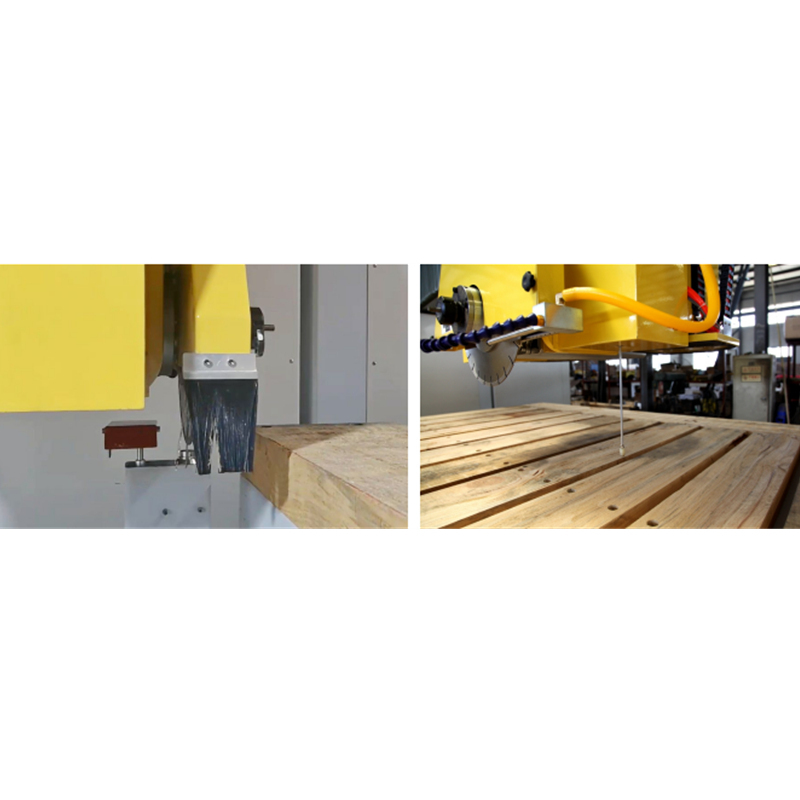

It is a new generation of 5axis Monoblock Bridge Saw with Vacuum Manipulation,Camera on Board,Tool Presetting,Slab Thickness Probe,Milling&Coring via collet on tilting head,advanced intelligent and synchronous CNC control system. Its powerful 11kw/15Hp main spindle with adjustable speed from 1000-6500rpm featuring tooling collet attachment provides a wide array of tasks using coring bits and router bits. Easy to use touch screen interface allowing quick and easy programming of simple jobs or programs imported via DXF. Vacuum manipulation on head is a must on any new bridge saw,it allows you to start the program and have a slab completely cut and moved on the table without the operator having to stop machine to move away. Real-time on board camera allows you to position the programmed pieces precisely over the area of the slab that requires cutting. Slab Thickness Probe can measure slab’s thickness automatically. Tool Presetting can auto measure the diameter of blade or milling cutter Its head can rotate 360°and chamfer 0-90°. It can cut,drill,slot,dig round,mill,profile edge, slash cutting and other multi-functional integration.It is suitable for quartz stone, rock slab, artificial stone, granite, marble and other large, medium and small stone decoration projects.
Characteristic:
1. Compact size without needing the ground base.
2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators.
3. With powerful functions, the machine can work almost all the jobs of a small factory.
4. With less electricity and more efficiency, the cost is decreased much.
5. High quality accessories and electric parts are used to secure long service life and low cost.
Technical Parameters
|
Type |
unit |
SMT-500 |
|
Main motor/Voltage/frequency |
|
11kw/380v-3phase,50Hz |
|
Workbench size |
mm |
3800x2300 |
|
Stroke of X axis |
mm |
3500 |
|
Stroke of Y axis |
mm |
2000 |
|
Stroke of Z axis |
mm |
350 |
|
Stroke of A axis |
|
360 degree rotation |
|
Stroke of B axis |
|
Auto 0-90degree |
|
Cutting speed of X axis |
mm/min |
1-15000 |
|
Cutting speed of Y axis |
mm/min |
1-12000 |
|
Cutting speed of Z axis |
mm/min |
1-2000 |
|
Rotating speed of A axis |
R/min |
0-10 |
|
Dia. Of diamond blade |
mm |
260-500 |
|
Max.cutting thickness |
mm |
110 |
|
Camera capture layout |
|
Yes |
|
Tilting workbench |
|
80 degree tilting |
|
Spindle of main shaft |
/rpm |
1000-6000 |
|
Bore size of blade |
mm |
50 |
|
Programming method |
|
CAD & manual |
|
Vacuum Manipulation pressure |
|
-85kpa |
|
Auto measuring tool |
|
Yes |
|
Auto measuring thickness |
|
Yes |
|
Overall size(LxWxH) |
mm |
6350x4950x3450 |
|
Weight |
kg |
6700 |

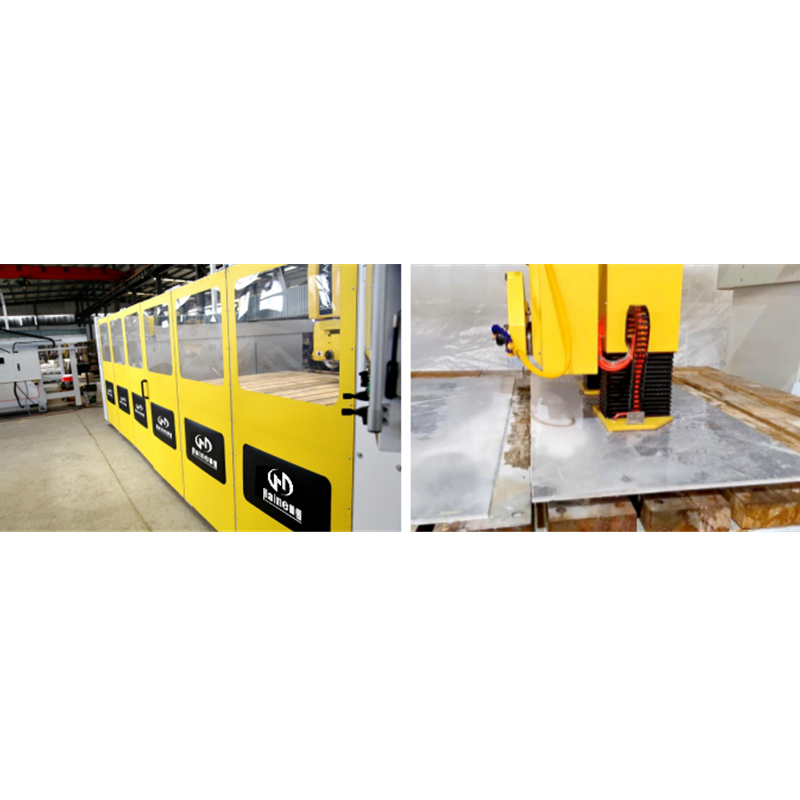

Processing

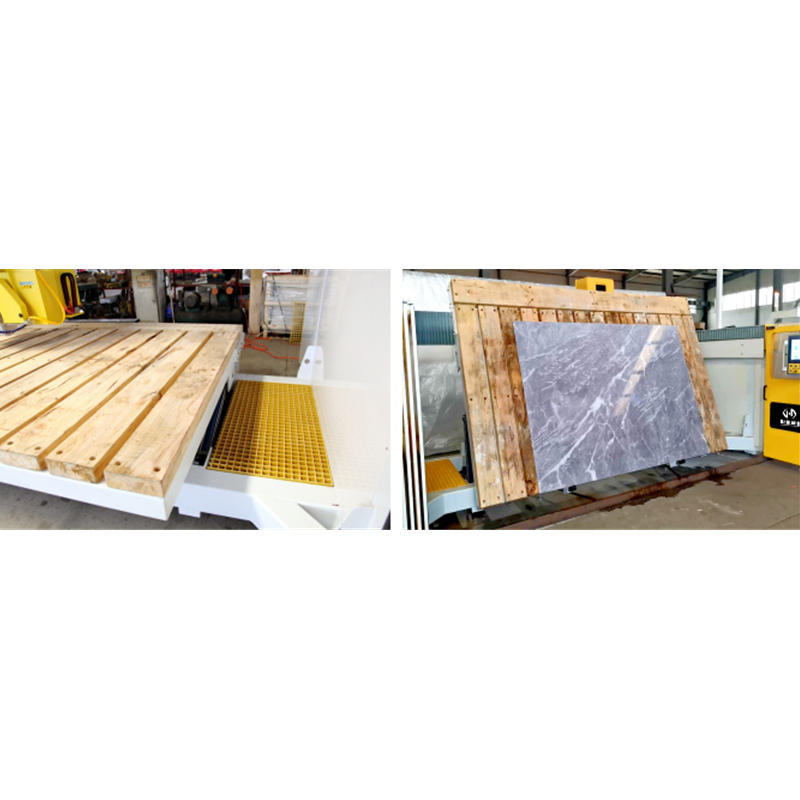

Loading
