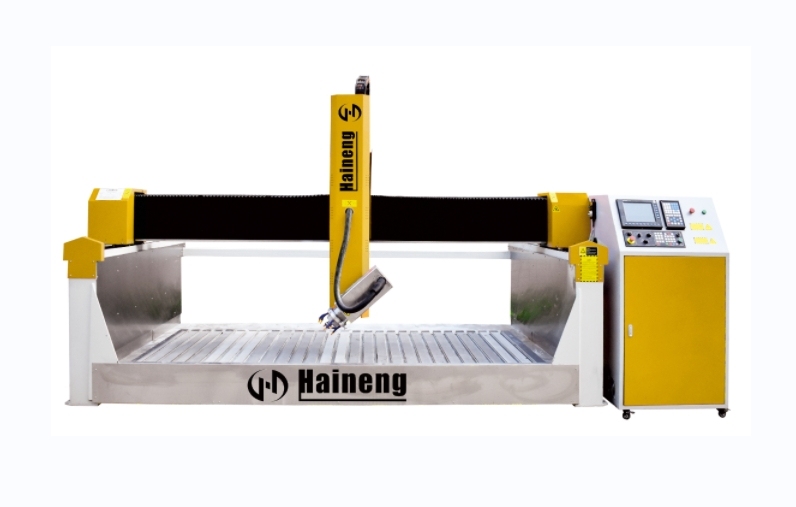

Single-Head Swing Engraving Machine
The single-head swing-head engraving machine can be operated automatically through computer control, reducing the need for manual intervention and improving production efficiency. It can run continuously without the need for breaks, thus reducing production costs.
Item No.: DKJ-DT1
- Information
Single-Head Swing Engraving Machine
Performance characteristics
1.The latest system, efficient and stable
2.X, Y axis 30 rails, Y axis double rails
3.XY reducer drive, Z-axis with brake function
4.Gantry height 1000, suitable for engraving large workpieces
5.The servo motor adopts bus absolute value servo, permanent memory, does not run out of position when power is off, and has high accuracy
6.Suitable for the processing of curved and semicircular products such as building materials, ancient building, gardens, etc.
Technical Parameters
Technical parameters | |
Equipment model | DKJ-DT1 |
Dimensions | 2200x4000x 3000mm |
Processing size | 1500x 2500mm |
Feed height | ≤800 (Customizable) |
Spindle power | 7.5KW (Customizable) |
Drive system | Servo |
Control system | NC studio/RichAuto (Customizable) |
