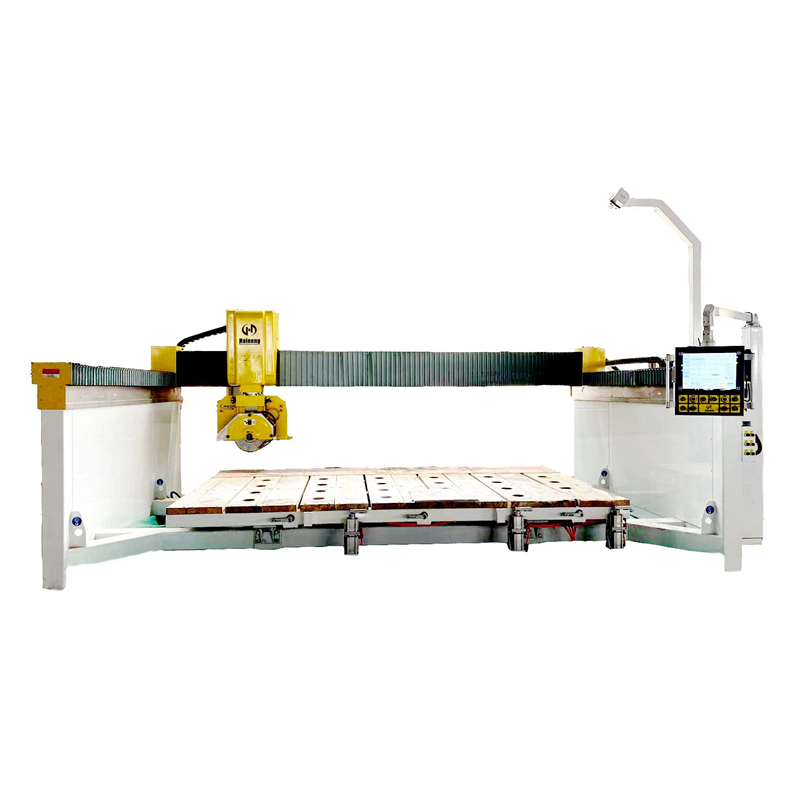

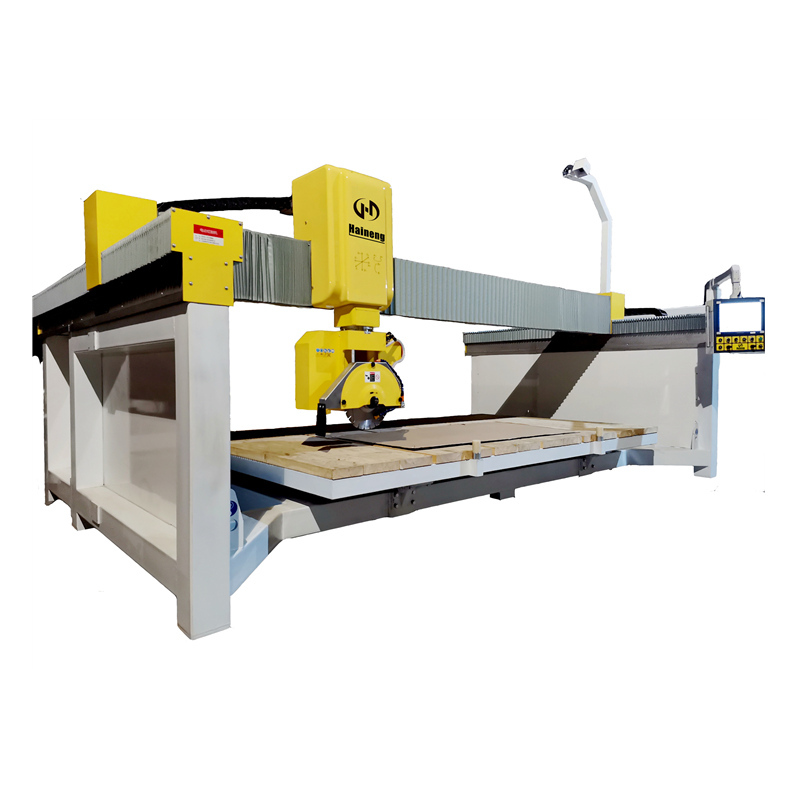

WZQ-400 Multi Function CNC 5 Axis Stone Cutting Machine
It is the new generation multi-function processing machine. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.
Item No.:WZQ-400
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
It is the new generation multi-function processing machine. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge. This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Characteristic:
1. Compact size without needing the ground base.
2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators.
3. With powerful functions, the machine can work almost all the jobs of a small factory.
4. With less electricity and more efficiency, the cost is decreased much.
5. High quality accessories and electric parts are used to secure long service life and low cost.
6.Image input supports：Master CAM, UG, Cimatron, Solid CAM, JDPaint.
Technical Parameters
Type | unit | WZQ-400 |
Voltage/frequency |
| 380v-3phase,50Hz |
Main motor power | kw | 7.5 |
Stroke of X axis | mm | 3500 |
Stroke of Y axis | mm | 2000 |
Stroke of Z axis | mm | 450 |
Stroke of A axis |
| 360 degree |
Stroke of B axis |
| 0-90degree |
Cutting speed of X axis | mm/min | 1-15000 |
Cutting speed of Y axis | mm/min | 1-12000 |
Cutting speed of Z axis | mm/min | 1-2000 |
Rotating speed of A axis | R/min | 0-7 |
Dia. Of diamond blade | mm | 400 |
Max.cutting thickness | mm | 80 |

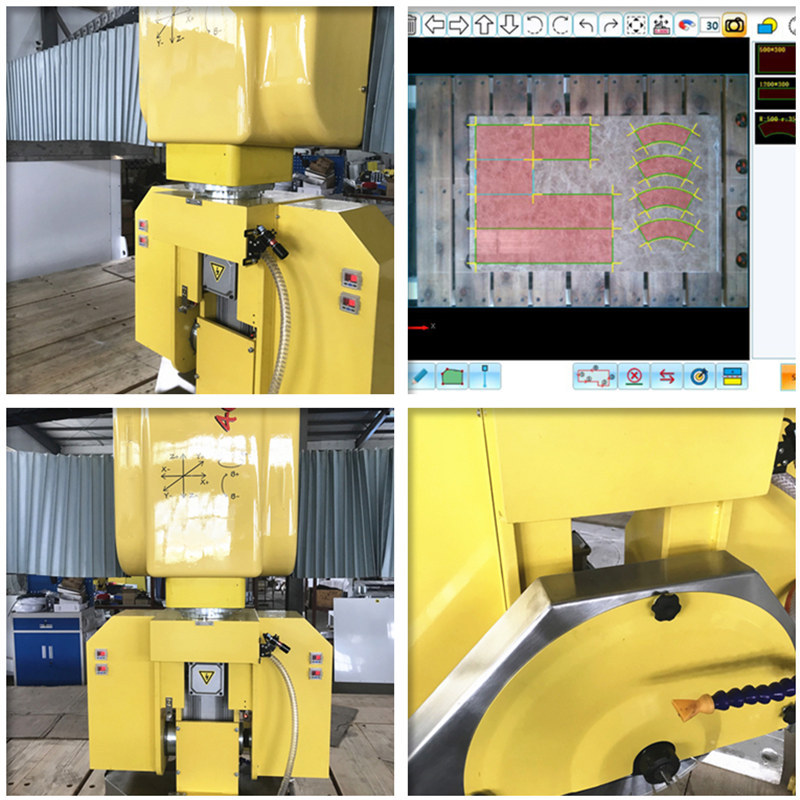

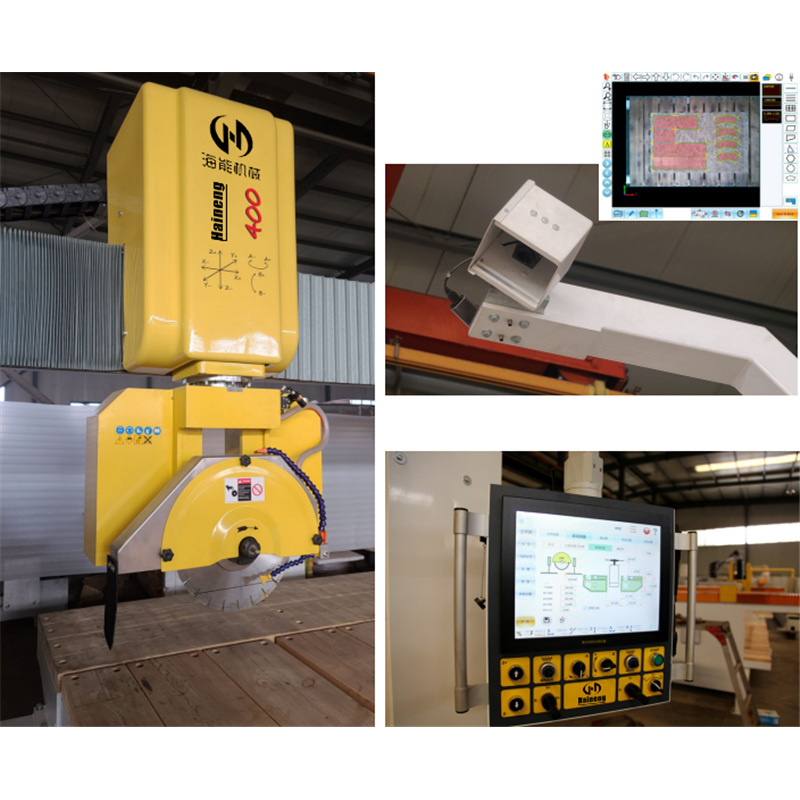

Camera capture layout |
| Yes |
Tilting workbench |
| 80 degree tilting |
Spindle of main shaft | rpm | 1000-6000 |
Bore size of blade | mm | 50 |
Programming method |
| CAD & manual |
Point imaging |
| Yes |
Overall size(LxWxH) | mm | 5750x3050x3200 |
Packing size(LxWxH) | mm | 5500x2100x2100 |
Weight | kg | 4300 |
Warranty |
| 1Year |
Lead time |
| 50 working days |
Processing
Loading
